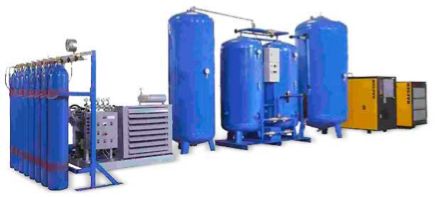

Oxygen supply with cylinder filling without
extensive logistics at a purity range up to
95%
Oxygen
PSA Units
OFS-Series for filling cylinders
|
OFS I
|
OFS II
|
OFS III
|
OFS IV
|
|
|
Capacity at 95% purity
|
1,6 Nm3/h
|
3,2 Nm3/h
|
16 Nm3/h
|
26 Nm3/h
|
|
Power consumption
|
4,28 kW
|
7,3 kW
|
30,2 kW
|
49,5 kW
|
|
Pressure
|
150 bar (g)
|
150 bar (g)
|
170 bar (g)
|
200 bar (g)
|
|
Cylinder connections
|
4
|
6
|
6
|
8
|
|
Filling time 40 litre cyl.
|
15 h / 4 cyl.
|
11,3 h / 6 cyl.
|
2,3 h / 6 cyl.
|
1,8 h / 8 cyl.
|
|
Cylinders 40 L/day
|
6
|
12
|
64
|
104
|
|
Dimensions
|
120 x 160 x (h) 140 cm
|
120 x 220 x (h) 185 cm
|
230 x 400 x (h) 240 cm
|
230 x 600 x (h) 240 cm
|
|
Weight
|
850 kg
|
950 kg
|
2.980 kg
|
5.980 kg
|
|
Included in delivery
|
||||
|
OFS I
|
OFS II
|
OFS III
|
OFS IV
|
|
|
Touch screen
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Compressed air tank
|
No
|
280 L
|
280 L
|
280 L
|
|
Oxygen tank
|
150 L
|
150 L
|
150 L
|
150 L
|
|
Compressor
|
Atlas Copco
GX 3FF |
Atlas Copco
GX 5FF |
Atlas Copco
GA 22CP |
Atlas Copco
GA 37CP |
|
Booster
|
Rix C2PS-L50
|
Rix C2PS-H50
|
Rix 2V3B
|
Rix 4V4BG
|
|
Filling ramp
|
Yes
|
Yes
|
Yes
|
Yes
|
|
System assembly
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Medical upgrade
|
Yes
|
Yes
|
Yes
|
Yes
|
Oxygen supply without extensive logistics at a
purity range up to 95%
Technology:
Pressure Swing Adsorption:
Purity:
Up to 95%
Capacity:
Standard units up to:
26 Nm³/h at 95%
Special units up to 200 Nm³/h on request
26 Nm³/h at 95%
Special units up to 200 Nm³/h on request
Primary air:
Compressors with refrigeration dryers and filters
or
compressed and cleaned air provided from the customer
compressed and cleaned air provided from the customer
Options:
Alert function, analyser units, operation-hour
counter,
booster for pressure up to 300 bar, touch-screen, SMS-message
system, flow meter, special voltage design, skid mounted or
mounted in a container for outdoor installation
booster for pressure up to 300 bar, touch-screen, SMS-message
system, flow meter, special voltage design, skid mounted or
mounted in a container for outdoor installation
